Pre-made Bag Horizontal Form Fill Seal Packaging Machine
Mechanical Features

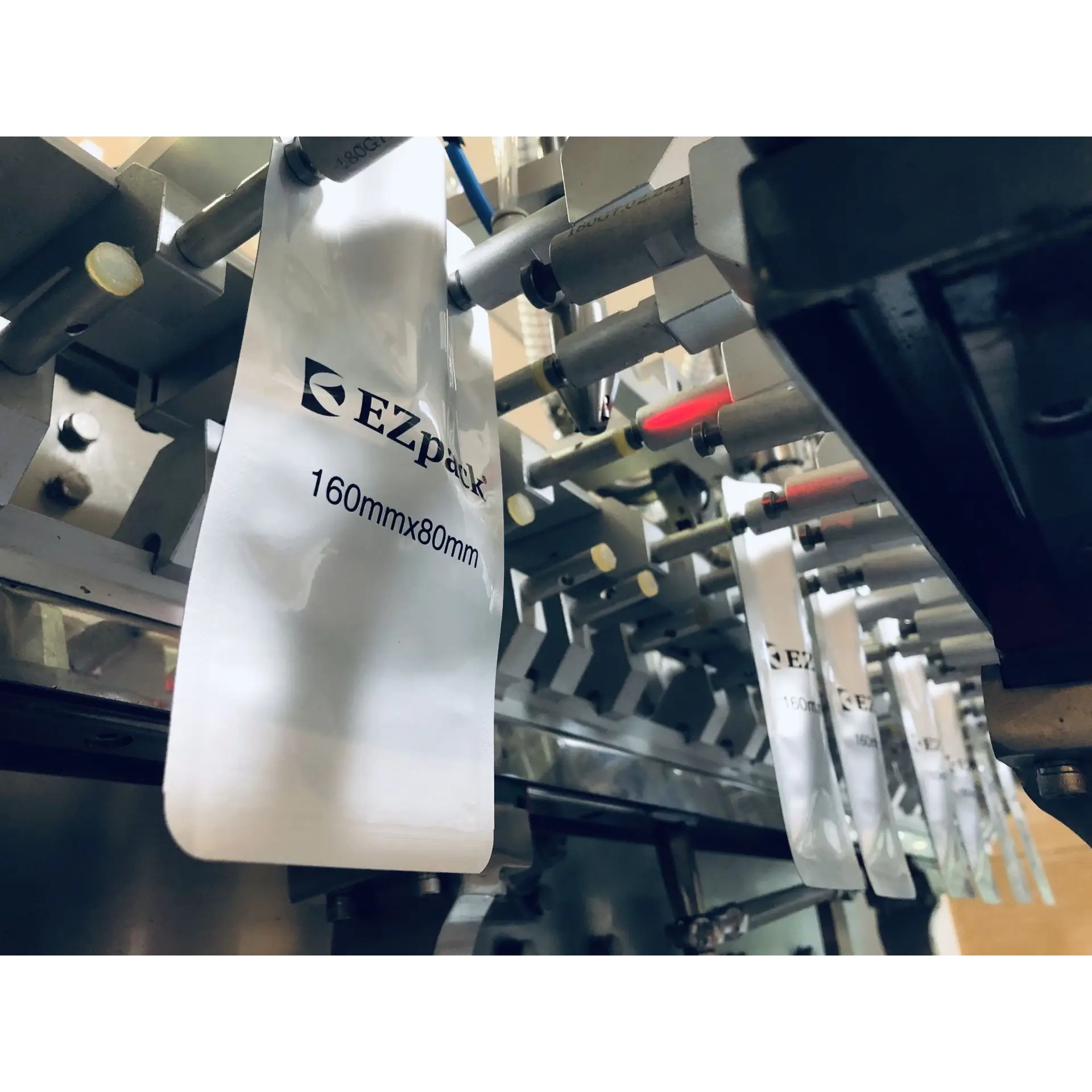

The bag-making horizontal packaging machine can select a suitable unloading system when packaging different materials to ensure the accuracy of the filling amount. The adjustable range of packaging specifications and sizes is highly flexible and can produce diversified packaging.
The horizontal bag making machine can realize three-side sealing, four-side sealing, special-shaped bags, zipper bags, spout bags, stand-up bags and other forms of laminated bags. The shape and sealing texture can also be customized according to needs.
Specifications
| Model | EZP-H210 |
|---|---|
| Applicable bag type | Stand-up Pouch, Side-sealed Pouch |
| Bag Size | W:110-320 mm L: 100-200 mm |
| Filling amount | 10g-1000g |
| Capacity | 20-50 bags/min |
| Air requests | 0.7 m3 / min |
| Power Supply | AC 220V, 1 ph , 60 HZ, 3.5 KW |
| Weight | 2000 kgs |
| Machine Dimensions | 3000 (L) x 1050 (W) x 1600 (H) mm |
