Automatic Labeling Machine
Mechanical Features

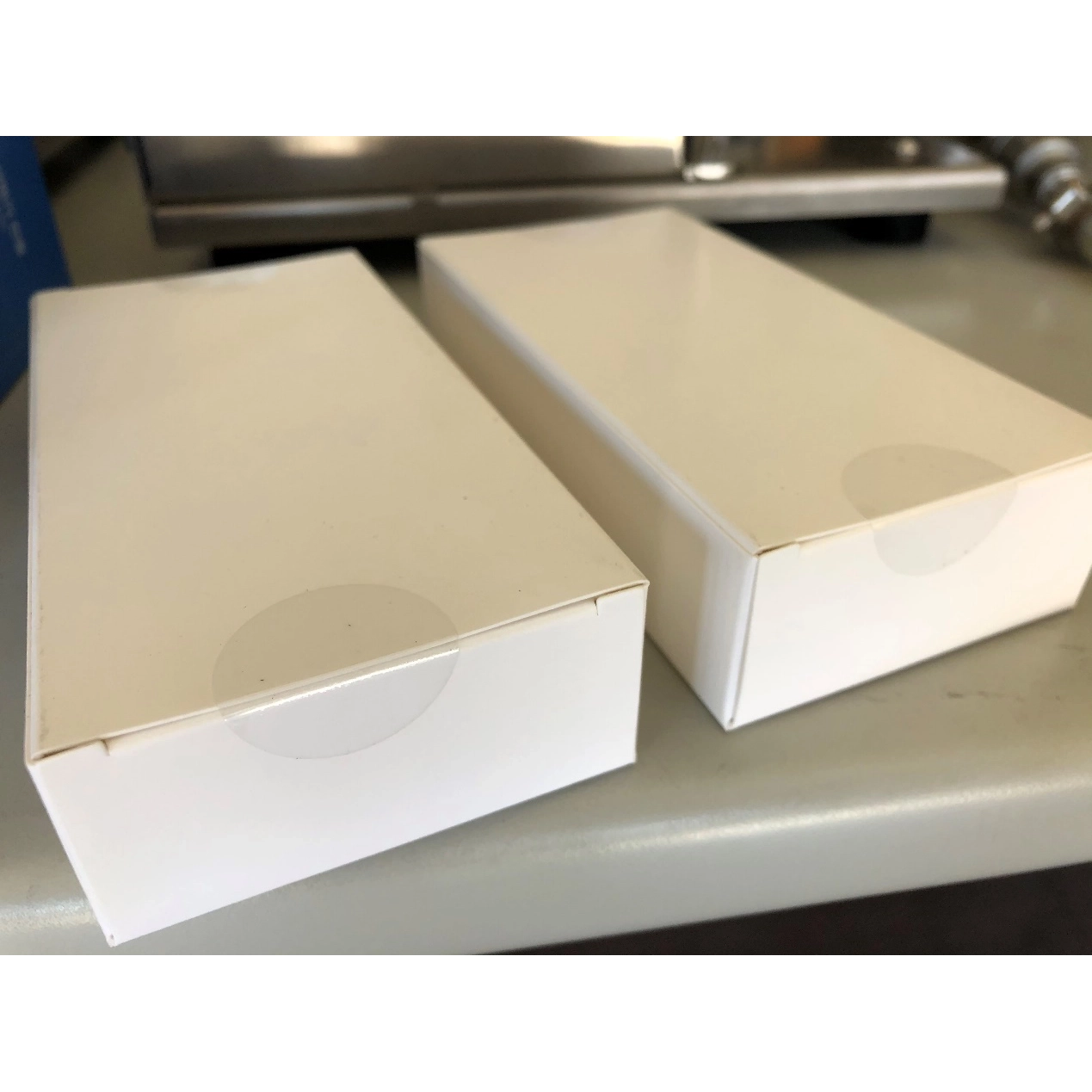

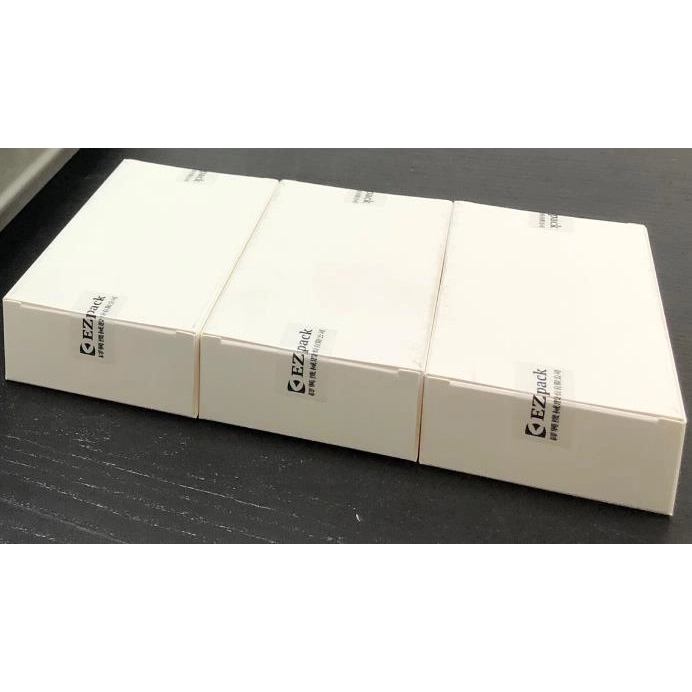

EZL-B20 is an easy, intuitive semi-automatic labeling machine to apply the tamper-evident label to the side of the carton tuck-in flap. It is designed as an off-line system for semi-automatical operation. It is quick, easy and safe to operate, with the active movement being totally under operator control. Minimum capital outlay. High-quality applicator for consistent label placement. Maintenance-free design with robust construction.
Made in Taiwan
Specifications
| Model | EZL-B20 |
|---|---|
| Working Size of Labels Rectangular label size |
Rectangular label size: L: 20-30 * W: 20-30 (mm) Round label diameter: 20-30 (mm) |
| Label Thickness | 0.09 – 0.1 mm |
| Capacity | 20~26 pcs / min |
| Label Roll Max | Ø 220 mm |
| Suitable for inside diameter | 3 inch / 76.4 mm |
| Power Supply | AC 110 / 220V, 1 ph , 60 HZ |
| Net Weight | 7 kgs |
| Machine Dimensions | 500 (L) x 240 (W) x 250 (H) mm |
