Centrifugal tube filling machine
Mechanical Features

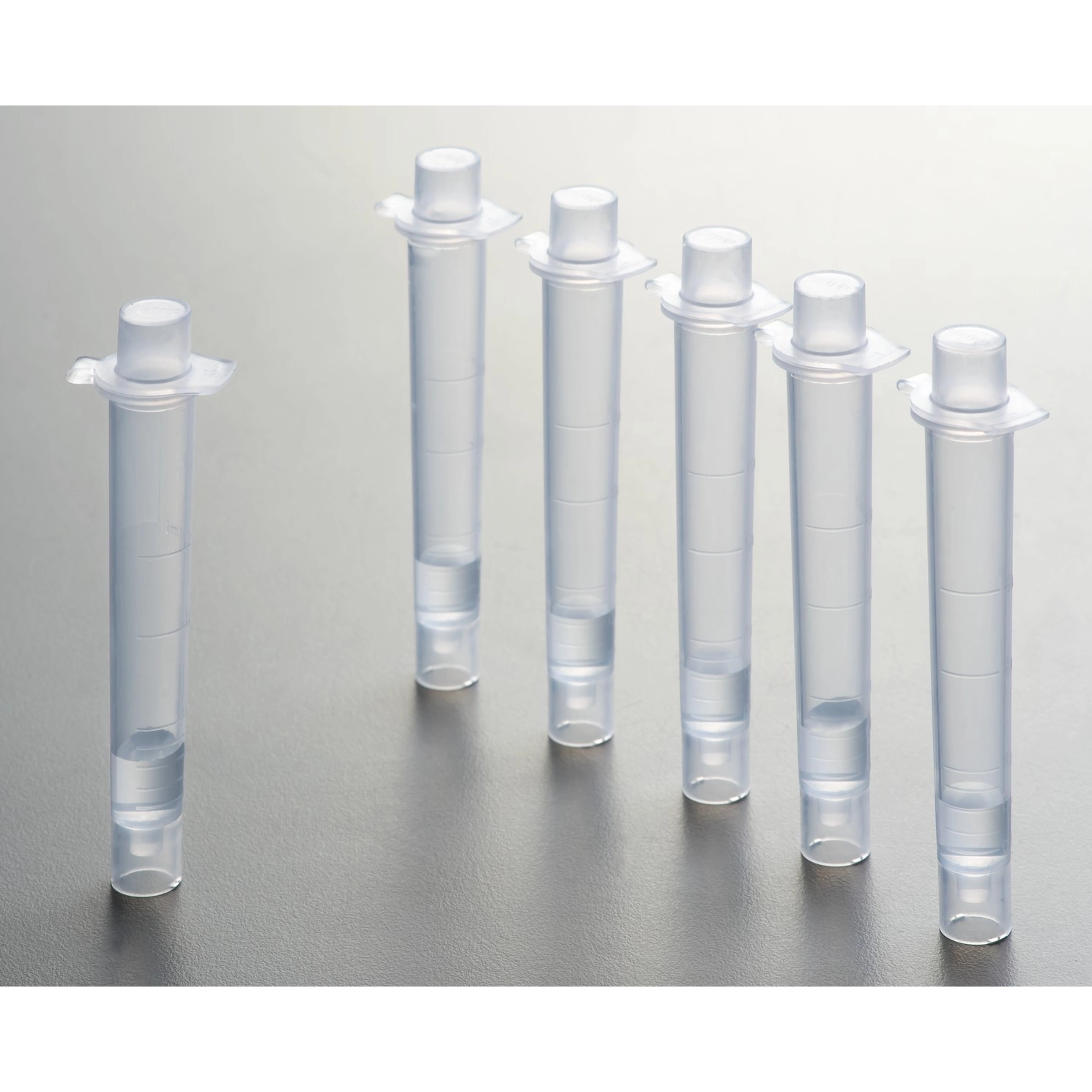

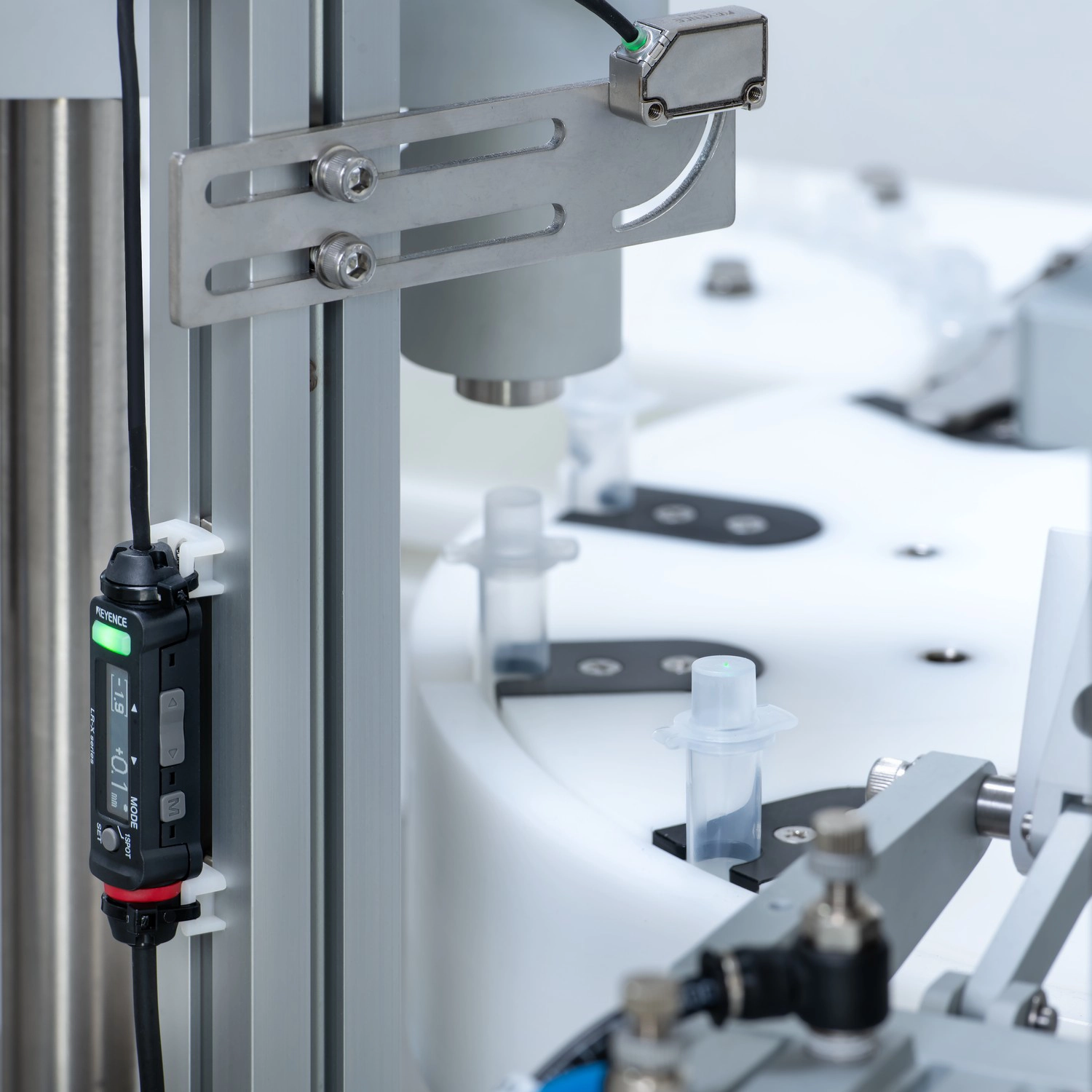

This equipment is developed by Yixing Machinery specifically for filling centrifuge tubes with caps. It includes automatic bottle feeding, bottle alignment, cap orientation, filling, capping, inspection, and discharge.
It utilizes a high-precision stepper filling system, suitable for high-precision micro-filling requirements in the range of 0.1ml to 10ml.
Commonly used in the pharmaceutical and biotechnology industries for micro-filling processes.
Designed and manufactured in Taiwan, it holds Taiwanese invention patents.
Specifications
| Model | EZF-P2208 |
|---|---|
| Applicable Containers | 連蓋離心管 |
| Filling Range | 0.1~10 ml |
| Capacity | 20~30 bpm |
| Air requests | 8kg/cm2 |
| Power Supply | AC 220V, 1 ph, 3.5 KW |
| Net Weight | 300 kgs |
| Machine Dimensions | 1320 (L) x 1510 (W) x 1890 (H) mm |
