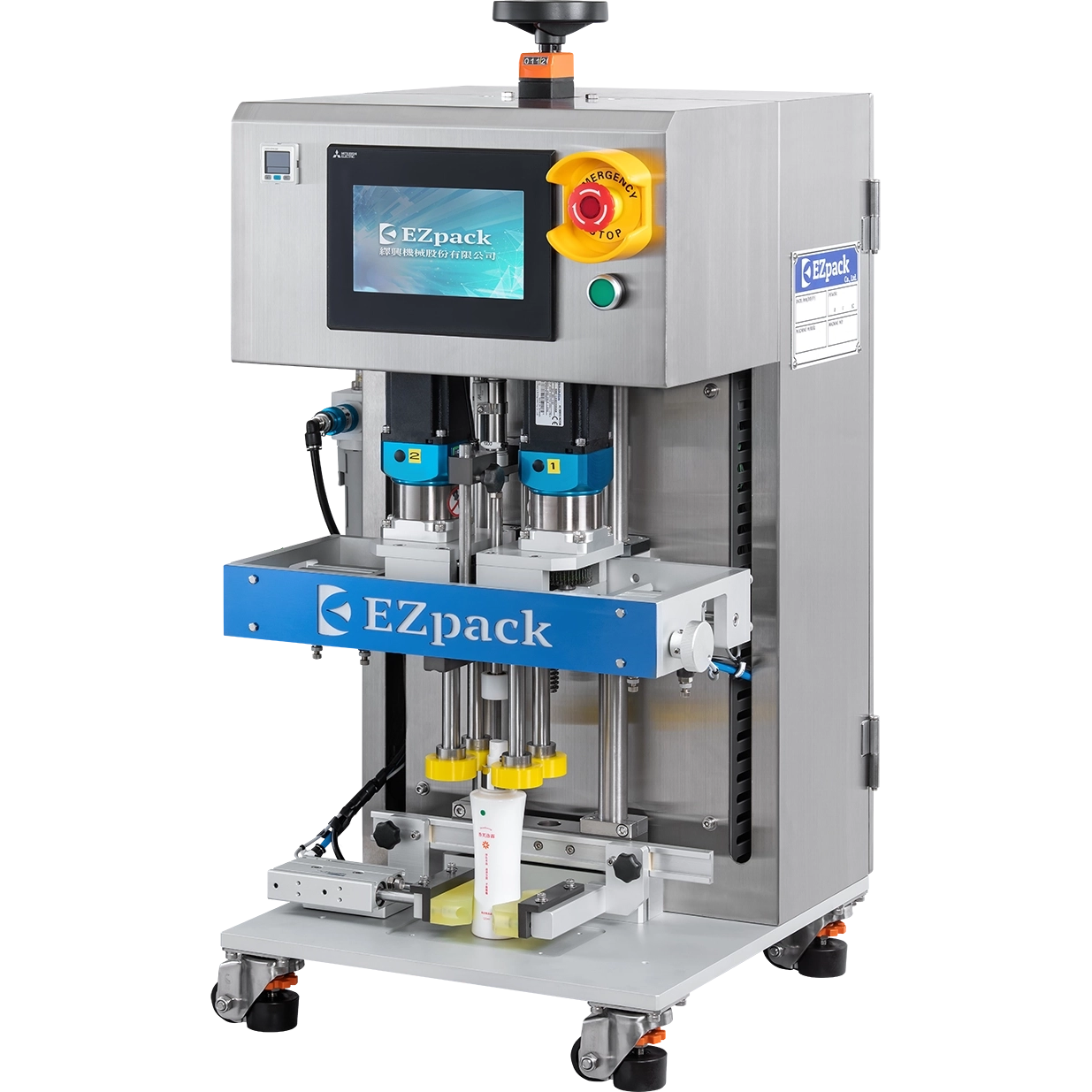

Side-warp capping machine
Mechanical Features
- Servo-controlled cap tightening torque can be adjusted.
- Mitsubishi 7-inch full-color HMI (Human-Machine Interface).

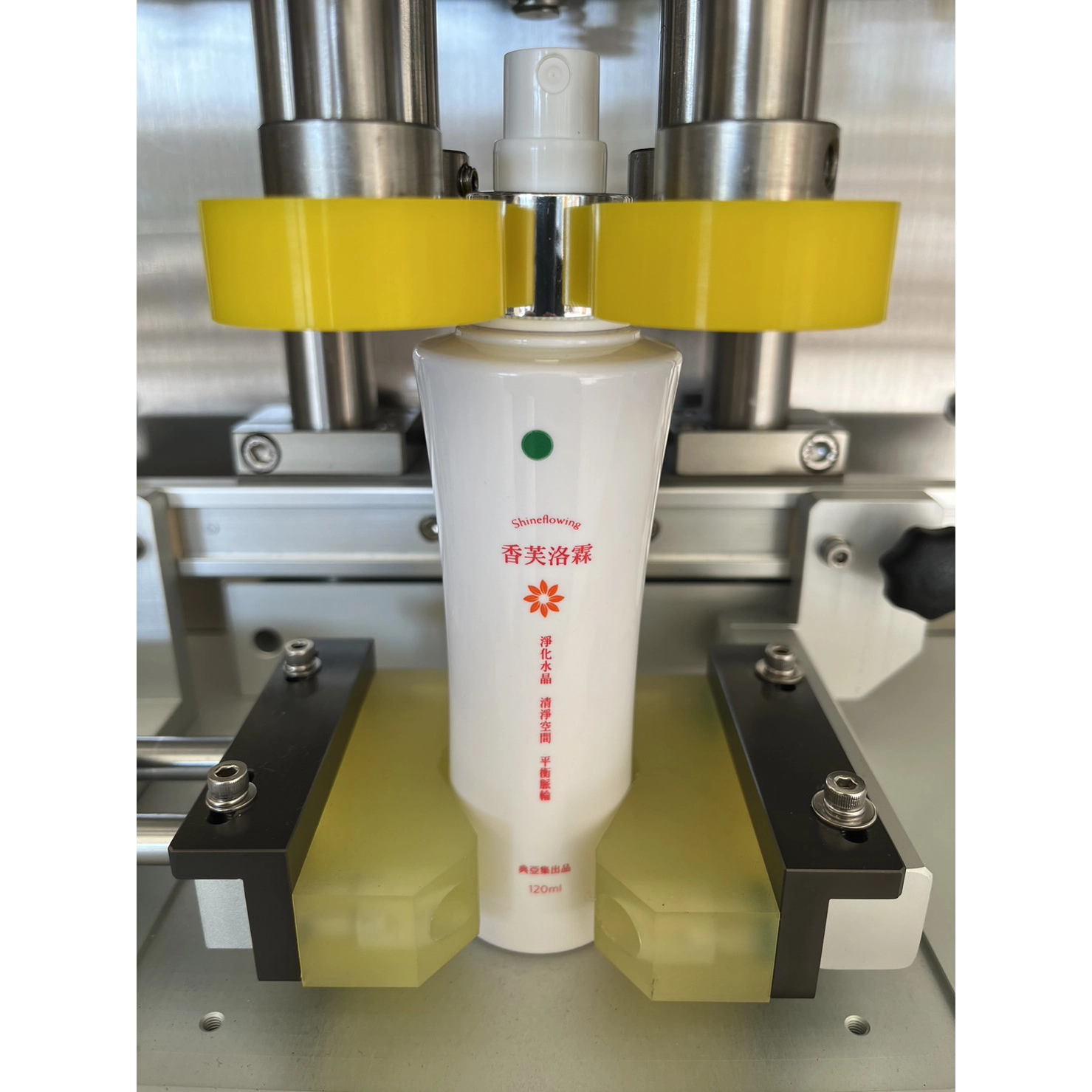

- Cap height and width can be adjusted using a rotating handwheel without the need for tools
- Multiple start-up modes available: foot pedal start, HMI button start, or optional automatic sensing start.

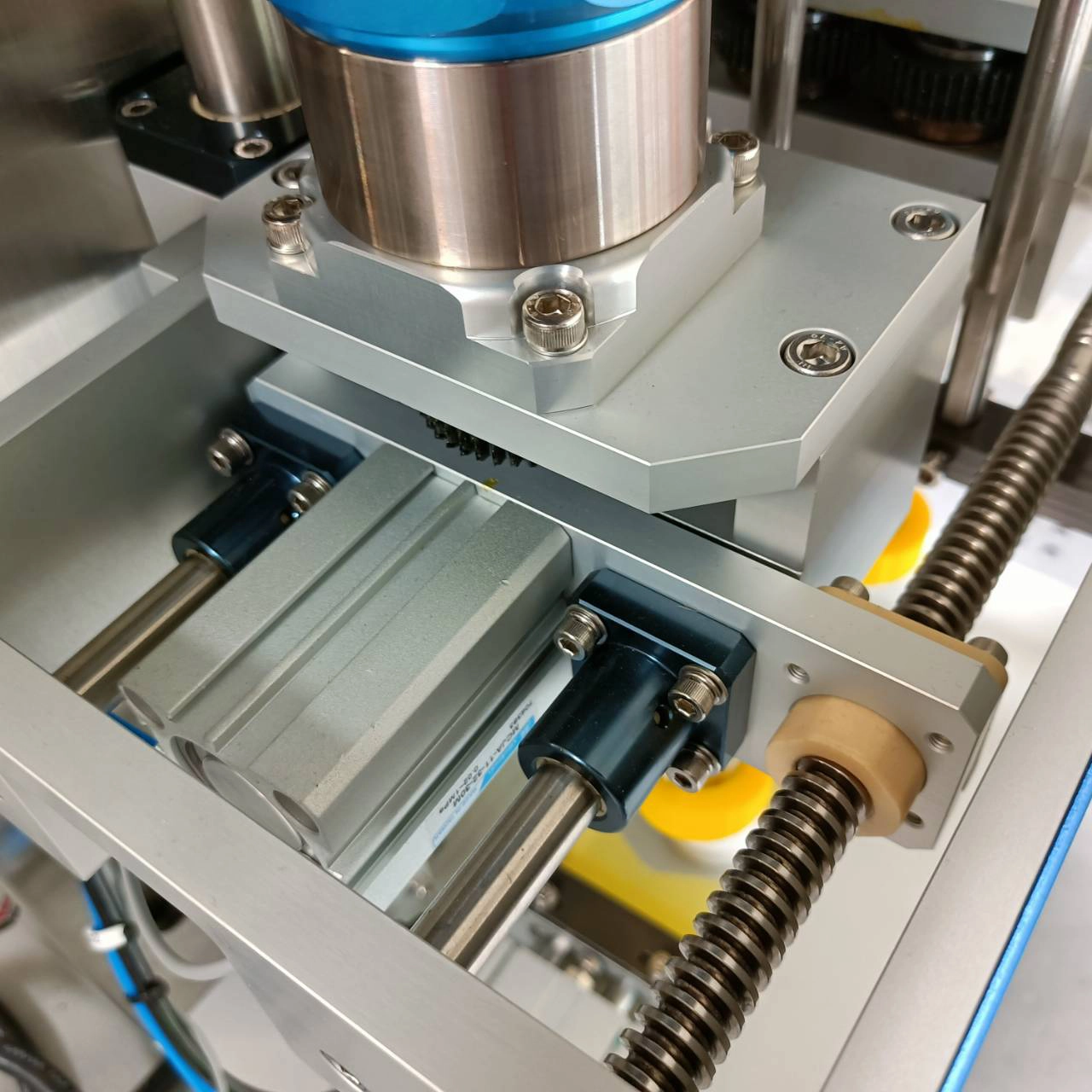

- The machine body is made of SUS304 stainless steel and aluminum alloy. The mechanism adopts German igus patented dynamic engineering plastic, which has unique self-lubricating properties, eliminating the need for oil maintenance. It is clean and aesthetically pleasing. Made in Taiwan
Specifications
| Model | EEZC-W500 |
|---|---|
| Bottle cap | Φ 22~80 mm |
| Bottle body | Φ 28-90 mm (customized) |
| Bottle height | 60~210 mm |
| Capacity | 8~15 bpm (Operator-dependent) |
| Air requests | 0.6 m3 / h |
| Power Supply | AC 220V, 1 ph, 60 HZ, 1.5 KW |
| Net Weight | 80 kgs |
| Machine Dimensions | 500 (L) x 475 (W) x 870 (H) mm |
